The Next Era of Electronics Manufacturing

AI-First Manufacturing.
Engineered with Intelligence.

Where artificial intelligence meets precision engineering to create smarter, more connected, and future-ready electronics manufacturing.

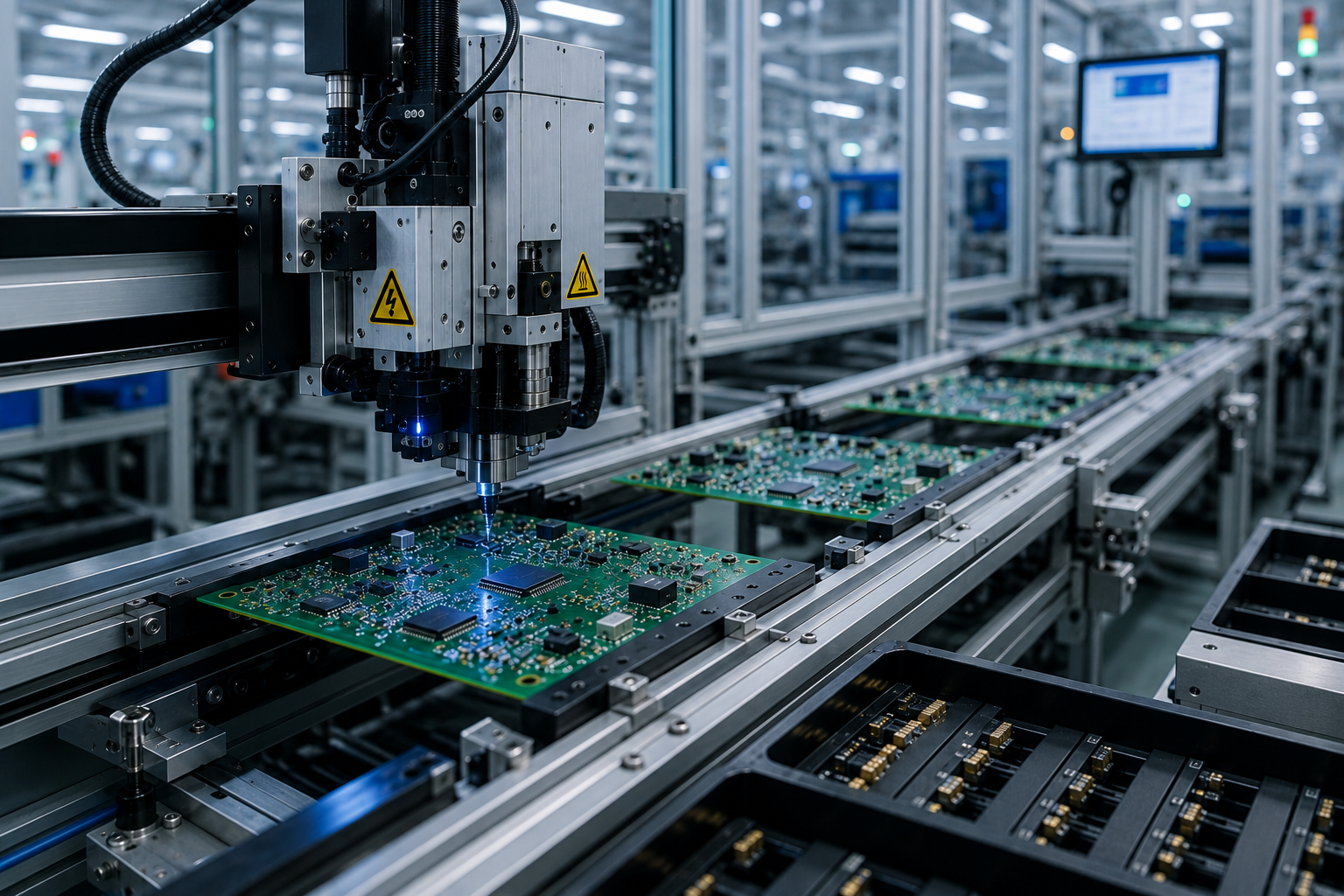

Shematic AI Manufacturing Factory
99.97%
First Pass Yield (FPY)
< 2 hrs
Technical Quote Turnaround
12,400+
Sensor Telemetry / Sec
< 48 hrs
Rapid Prototype Delivery

Our Services

AI-Native, Full-Stack
Electronics Services.

From architectural concept and PCB layout to high-volume production, Shematic delivers a complete hardware continuum powered by native machine intelligence at every phase.

Contract Manufacturing

CM Services

Full-scale contract manufacturing with AI-optimized production lines. From rapid prototyping to mass production, we deliver precision at scale with 99.97% first pass yield.

  • High-speed SMT & mixed-technology assembly lines
  • Automated 3D AOI & X-ray inspection for zero-defect yield
  • Turnkey rapid prototyping dispatched in under 48 hours
  • Seamless production scaling from pilot runs to mass volume

Offering Types

Job Work PCBA and Box BuildCustomer-supplied materials; we provide skilled labour and production.
Turnkey PCBA and Box BuildWe source all components and deliver a fully finished, tested product.
Get Started

ODM Services

Original Design Manufacturing

We take your product from concept to completion, handling design, engineering, prototyping, and production. AI assists at every stage of development to deliver market-ready electronics.

  • AI-assisted schematic & PCB layout design
  • DFM/DFA review & BOM optimization
  • Custom enclosure design & firmware integration
  • Regulatory compliance & certification support

Product Scope

Concept to PrototypeIdea validation, electrical design, and rapid functional prototyping in weeks.
Prototype to ProductionDesign freeze, DFM review, tooling, and scale-up to mass manufacturing.
Get Started
From Bare Board to Tested Product
Stage 01 of 07

Automated PCB Ingest

Laser-etched 2D serialization and computer-vision fiducial reticles lock substrate coordinates at the conveyor entry.

From Bare Board to Tested Product
Stage 01 / 07Automated PCB Ingest
R22 R22 CPU1 EPS_12V1 ATX_PWR1 DIMMA1 DIMMA2 DIMMB1 DIMMB2 PCIEX16_1 PCIEX1_1 PCIEX16_2 M2_1 224222602280 SATA6G_1SATA6G_2SATA6G_3SATA6G_4 CPU_FAN SYS_FAN1 F_PANEL USB_E12 HD_AUDIO LAN1 U14 BIOS BAT1 U31 CPUDRAMVGABOOT C411R208C519R620C122R731 CMX-790 PRO REV 1.02 94V-0 E347291 2641 FID-01 [LOCKED] FID-02 [LOCKED] FID-03 [LOCKED] FID-04 [LOCKED] SN: 26A-0894 IPC-A-610 CLASS 3 LOT-902 · DFM-VERIFIED FID-01 [LOCKED] FID-02 [LOCKED] FID-03 [LOCKED] FID-04 [LOCKED] LN81252641LN81252641 AU7802K2641AU7802K2641 SX8728E2641-BXSX8728E2641-BX 25Q25625Q256 PS5021TLC 4T21TLC 4T21PS5021TLC 4T21TLC 4T21 CR2032+ SN 26R4-0917QCSN 26R4-0917QC OK OK OK OK OK OK OK OK OK OK
Functional Test Passed
Scroll to assemble the boardFirst pass yield 99.97%

Capabilities

Building Your Product,
Layer by Layer

Every product we manufacture is constructed through a meticulously engineered process, with each step adding a new layer of precision, quality, and intelligence across the concept-to-scale continuum.

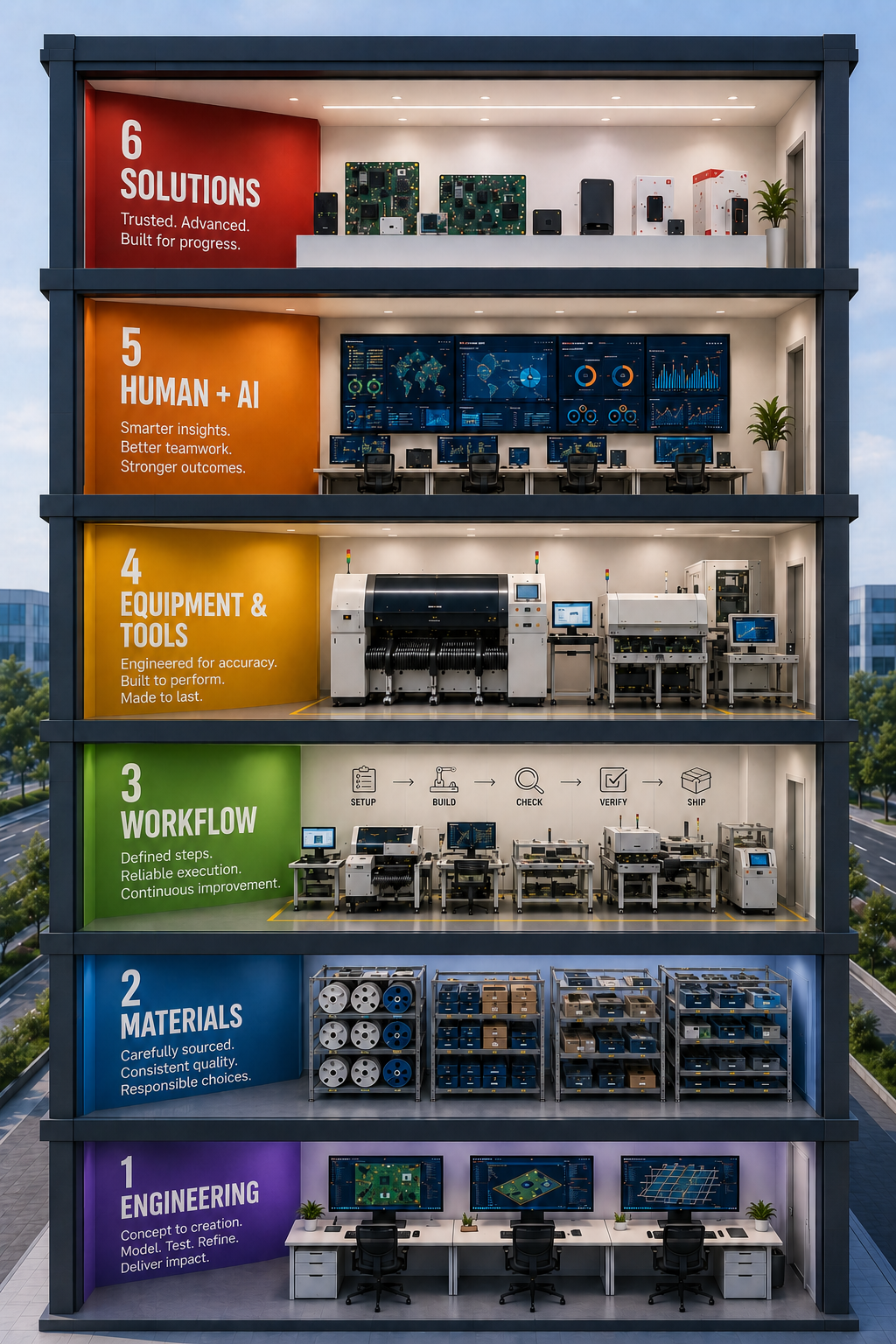

Integrated Ecosystem

Level 6: Products
Level 5: Human + AI
Level 4: Equipments / Tools
Level 3: Process
Level 2: Materials
Level 1: Design
Level 6

Products

Zero-defect finished electronics validated through automated functional stress testing, environmental burn-in, and full cryptographic traceability.

Capability: AI / ML Intelligence

Level 5

Human + AI

Supervisory human-in-the-loop orchestration where computer-vision co-pilots augment expert engineers for proactive root-cause prevention.

Capability: Real-time Analytics

Level 4

Equipments / Tools

Autonomous cyber-physical robotics with real-time IoT edge telemetry, self-calibrating toolheads, and predictive machine health models.

Capability: Cloud & Data Integration

Level 3

Process

Closed-loop digital twin modeling dynamically tunes manufacturing parameters to guarantee zero-drift process repeatability.

Capability: IoT Connectivity

Level 2

Materials

Neural supply chain algorithms audit tier-1 distributor feeds in real time, verifying component authenticity and reel-level traceability.

Capability: Cybersecurity

Level 1

Design

Automated neural DFM and schematic rule validation instantly flag footprint conflicts, component obsolescence, and thermal hotspots.

Capability: Automation & Smart Systems

Algorithmic Manufacturing Architecture

The 4M Framework.
Re-Engineered AI & Automation First.

Traditional electronics manufacturing manages Method, Machine, Man, and Material through static binders and manual calibration. Shematic transforms the entire 4M continuum into an autonomous, closed-loop cyber-physical architecture.

M1METHOD
CLOSED-LOOP PINN

Algorithmic Process Engineering

Engine: Physics-Informed Neural Networks
Dynamic thermal gradient reflow profiling
Closed-loop SPI paste volume auto-correction
IPC-7095 Class 3 solder void minimization
Thermal Drift Variance±0.2°C Dynamic
M2MACHINE
EDGE-AI TELEMETRY

Autonomous Cyber-Physical Systems

Engine: LSTM Anomaly & Vibration Analytics
Real-time optical nozzle alignment & vacuum telemetry
Predictive component feeder tension calibration
Automated tool-wear & drift compensation
Placement ToleranceFine-Pitch (±15μm)
M3MAN
SUPERVISORY CO-PILOT

Human-in-the-Loop AI Orchestration

Engine: Active Bayesian Defect Filtering
120 FPS multi-angle 3D AOI defect triage
Bayesian active-learning uncertainty escalation
Automated Engineering Change Order (ECO) parsing
Operator Decision Velocity10x Accelerated
M4MATERIAL
GRAPH NEURAL SOURCING

Autonomous Micro-Traceability

Engine: GNN Supply Graph & 2D Serialization
100% component reel 2D DataMatrix serialization
J-STD-033 MSD floor-life countdown timers
Real-time predictive obsolescence & EOL alerts
Component GenealogyWafer-to-Chassis

Why Shematic

Architected with Intelligence.
Engineered for Scale.

Shematic doesn't retrofit AI onto legacy bottlenecks. Our infrastructure was architected from inception with machine intelligence embedded across every operation - from autonomous supply chain forecasting to closed-loop SMT inspection. This is modern manufacturing where intelligence is the foundation, not an afterthought.

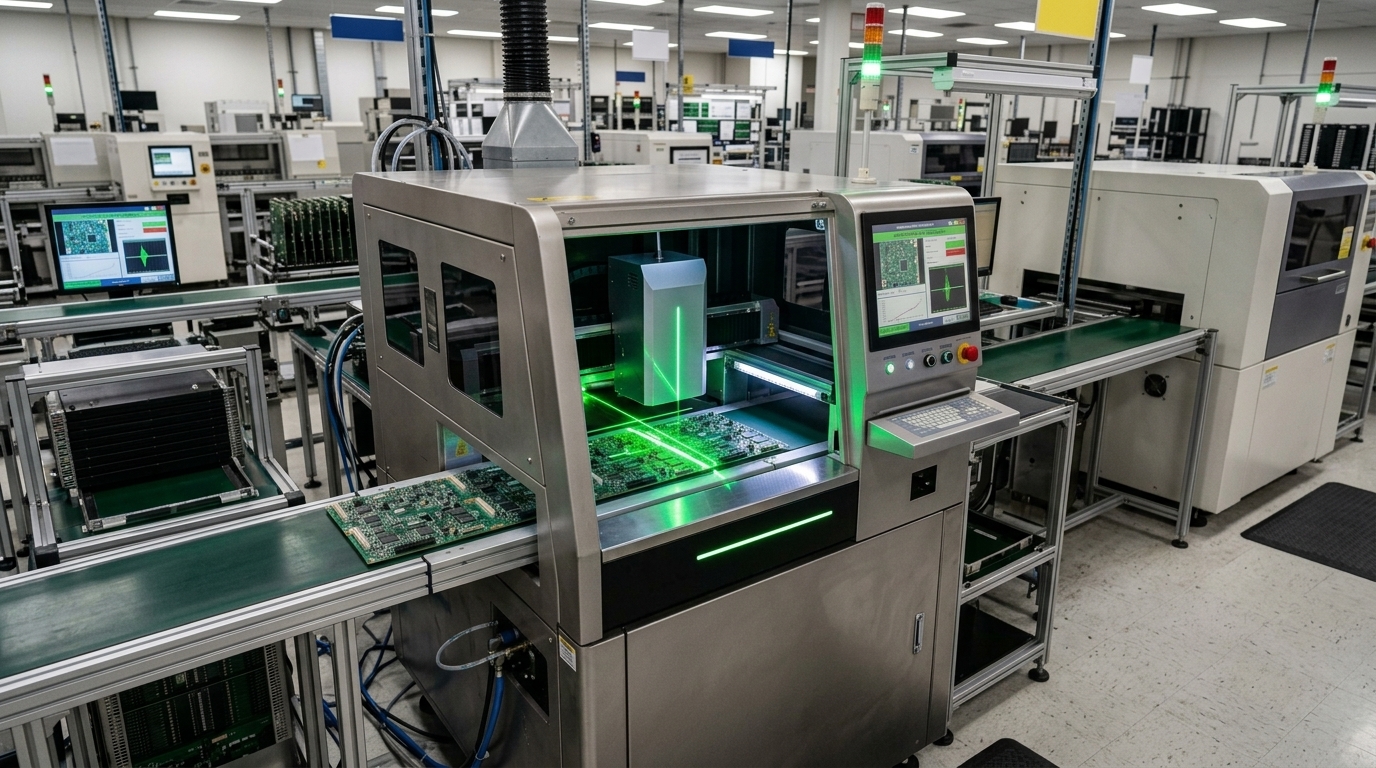

AI Inspection
LIVE · AOI ACTIVE

Real-Time Visual Fault Detection

CNN models analyze boards at 120fps, catching microfractures, solder bridges, and polarity errors invisible to the human eye without slowing the production line.

100%

Component Traceability

Every reel lot, solder paste batch, and thermal reflow profile is catalogued into an immutable digital twin for end-to-end IPC Class 3 auditability.

Predictive Maintenance

LSTM-based sensor models forecast equipment failure before it happens, keeping line uptime at 99.99%.

< 60s

Automated DFM & BOM Scrub

Neural parsing algorithms scan Gerber files and BOMs instantly, flagging lifecycle risks, component lead times, and footprint conflicts before production starts.

Autonomous Supply Chain

AI agents monitor 200+ supplier feeds, auto-reorder components based on demand forecasts, and reroute logistics around disruptions without human intervention.

Technical Specs

Manufacturing Capabilities

Our production lines are equipped for the most demanding high-density, high-reliability PCB assemblies.

Assembly Technologies

  • SMT (Surface Mount Technology)
  • Through-Hole (PTH) Assembly
  • BGA & μBGA Placement
  • Mixed Technology (SMT + THT)
  • Selective Soldering
  • Conformal Coating

Inspection & Testing

  • Automated Optical Inspection (AOI)
  • Solder Paste Inspection (SPI)
  • X-Ray BGA Inspection
  • In-Circuit Testing (ICT)
  • Functional Testing & Burn-in
  • Flying Probe Testing

Certifications

  • IPC-A-610 Class II & III
  • UL / CE / FCC
  • RoHS & REACH Compliance
  • ISO 9001:2015
  • IATF 16949 (Automotive Electronics)
  • IEC 62368 (Chargers)
  • ISO 14001 Environmental

PCB Specifications

  • Layers: 1 to 18+
  • Min. Trace / Space: 3/3 mil
  • Board Thickness: 0.4mm - 6mm
  • Materials: FR4, Rogers, Metal Core
  • HDI & Any-layer Interconnect
  • Impedance Control ±5%

Production Speed

  • Prototype Turnaround: < 48hrs
  • Component Placement: 100k CPH
  • Reflow Profiling: AI-optimized
  • NPI to Mass Production: 2 weeks
  • Demand Scaling: +300% surge ready
  • 24/7 Lights-Out Operation

Supply Chain

  • 200+ vetted component suppliers
  • AI-driven demand forecasting
  • JIT & Kanban inventory models
  • Real-time shortage monitoring
  • Bonded inventory programs
  • Global fulfillment partnerships

Why Switch

Shematic vs. Legacy Manufacturers

Traditional EMS companies are burdened by decades-old processes. Shematic was designed from day one to be the opposite.

CapabilityShematicTraditional EMS
AI-powered fault detection✓✗
Predictive machine maintenance✓✗
Real-time supply chain AI✓✗
Prototype turnaround< 48 hrs2-4 weeks
Technical Quote & DFM Turnaround< 2 hrs (AI)3-5 business days
First Pass Yield99.97%~94%
NPI to mass production2 weeks8-12 weeks
Lights-out night production✓✗

Ready to build with
Shematic?

Request a quote in minutes. Our AI engine will analyse your requirements and respond within 2 hours.

Start Your Quote
